SGW5120ZBSF
Xiangnongda brand
Xiangnongda Brand SGW5120ZBSF Swing Arm Garbage Truck

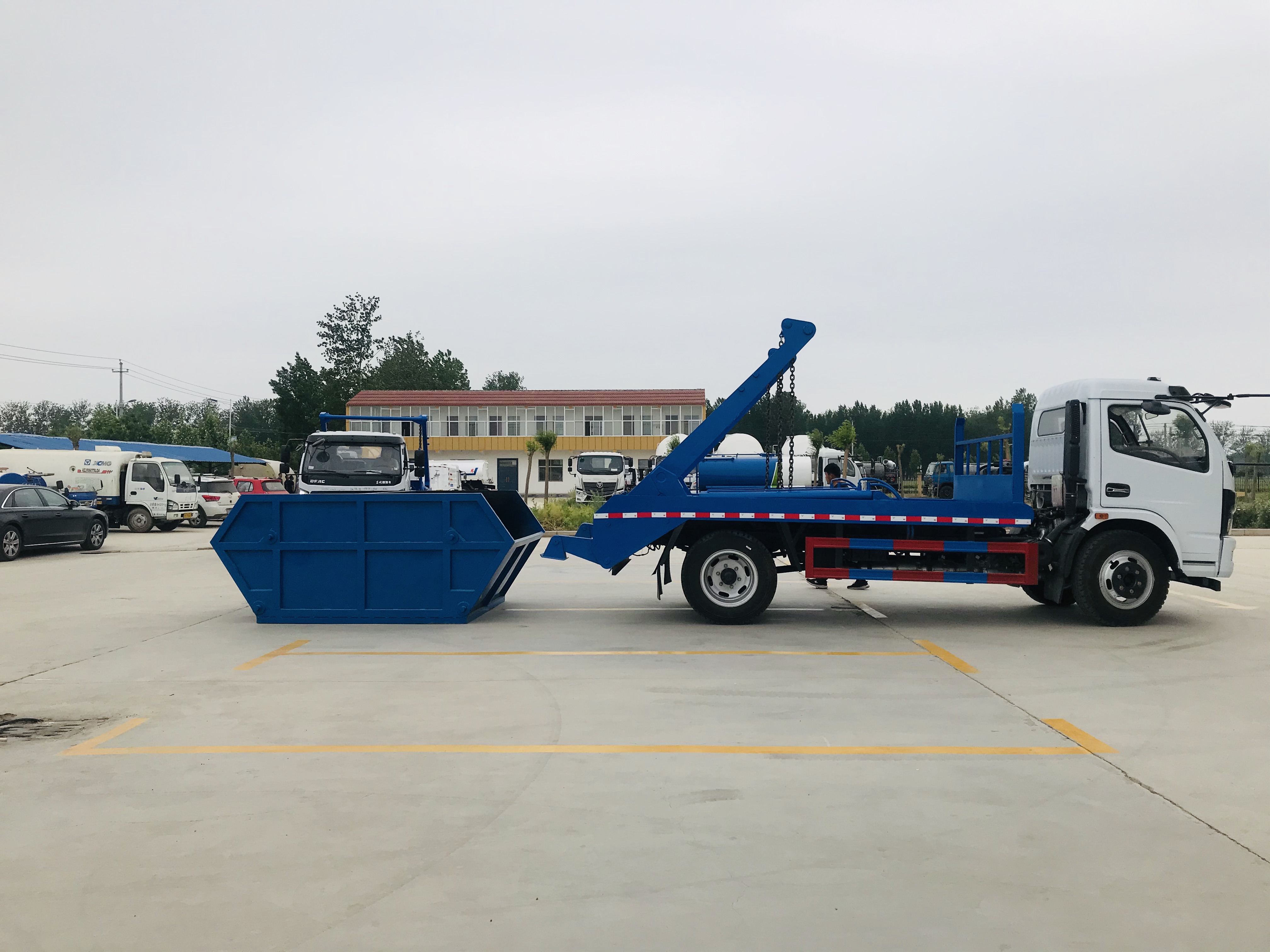

1:The whole vehicle pictures are shown below
|
|
|
|
|
|
Kind reminder: The entire vehicle can be sprayed in different colors
2： The detailed parameters of the entire vehicle are as follows
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 345 (Change) |
Product name | Swing arm garbage truck | Model | SGW5120ZBSF |
Total mass(Kg) | 11995 | Tank volume(m3) | |
Rated load capacity(Kg) | 7000 | External dimensions(mm) | 6880×2450×3050 |
Curb weight(Kg) | 4800 | Cargo compartment size(mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Number of passengers allowed in the cab (person) | 3 | Maximum load capacity of saddle (Kg) | |
Approach angle/departure angle (°) | 21/11 | Front suspension/rear suspension (mm) | 1130/1950 |
Axle load (Kg) | 4350/7645 | Maximum speed (Km/h) | 103 |
remarks | Optional driver's cab with chassis. Q235 material welded connection is used for the side rear protection. The cross-sectional size of the rear protection (mm) is 200 × 50, and the ground clearance height of the rear protection (mm) is 490. Only 3800mm wheelbase is optional ABS system manufacturer, model: Xiangyang Dongfeng Longcheng Machinery Co., Ltd., ABS/ASR-24V-4S/4M. Engine model/fuel consumption value (L/100km) corresponding relationship: Q28-130E60/20.1, YCY30165-60/20.3, CY4SK261/20.3, CY4SK361/20.3, YCY24140-60/20.1, ZD30D16-6N/20.3, NV30-C6D/20.3, H30-165E60/20.3, CY4SK161/20.3, NV30-C6G/20.3, NV30-C6C/20.3, D4.0NS6B170/20.3, D4.0NS6B185/20.3, YCS04190-68/20.3, D4.0NS6B160/20.1. CY4BK261/20.1, D25TCIF1/20.3, D30TCIF1/20.3, D40TCIF1/20.3, D45TCIF1/20.3. Only these 20 engines are optional. They are mainly used for garbage collection and transportation, and the main specialized device is the swing arm. The vehicle is equipped with a driving recorder with satellite positioning function. | ||
【Chassis technical parameters】 | |||
Chassis Model | EQ1125SJ8CDC | Chassis name | truck chassis |
Rand name | Dongfeng brand | Manufacturing enterprise | Dongfeng Motor Co., Ltd |
Number of axles | 2 | Number of tires | 6 |
Wheelbase (mm) | 3800,3950,4050,4100,4400,3600 | ||
Tire Size | 245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR | ||
Number of steel plate springs | 8/10+7,12/12+9 | Front wheelbase(mm) | 1745,1802,1820,1842,1765,1890 |
Fuel type | diesel oil | Rear wheelbase(mm) | 1630,1650,1800,1720 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine Manufacturer | displacement(ml) | efficiency(Kw) |
YCY30165-60 Q28-130E60 D30TCIF1 CY4SK361 NV30-C6D ZD30D16-6N D25TCIF1 YCY24140-60 CY4SK161 CY4SK261 NV30-C6G D4.0NS6B185 CA4DD2-18E6-30 YCS04190-68 D40TCIF1 D4.0NS6B195 D4.0NS6B170 CY4BK261 H30-165E60 D45TCIF1 D4.0NS6B160 NV30-C6C Q28-156E60 | Guangxi Yuchai Machinery Co., Ltd Anhui Quanchai Power Co., Ltd Kunming Yunnei Power Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Light Engine Co., Ltd Kunming Yunnei Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Cummins Engine Co., Ltd China FAW Group Co., Ltd Guangxi Yuchai Machinery Co., Ltd Kunming Yunnei Power Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Anhui Quanchai Power Co., Ltd Kunming Yunnei Power Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Anhui Quanchai Power Co., Ltd | 2970 2800 2977 3856 2968 2953 2499 2360 3856 3856 2968 4000 3230 4156 4052 4000 4000 3707 3000 4461 4000 3093 2800 | 121 96 125 125 120 120 110 103 135 125 115 136 132 140 135 143 125 100 120 162 118 120 115 |
3： Product breakdown image display
A swing arm garbage truck usually consists of a chassis, a compressed body, a swing arm device, and an operating system.
4： The product features are introduced as follows
(1) Swing arm garbage truck is a large motor vehicle that integrates garbage collection, compression, and transportation. It has the characteristics of high efficiency and environmental protection, and achieves safe and reliable operation through the design of fire performance and operating system. Widely used in urban and scenic environments, it plays an important cleaning role.
|
|
(2) Chassis configuration：
【Chassis technical parameters】 | |||
Chassis Model | BJ1073VDJDA-01 | Chassis name | truck chassis |
Rand name | Futon brand | Manufacturing enterprise | Beiqi Foton Motor Co., Ltd |
Number of axles | 2 | Number of tires | 6 |
Wheelbase (mm) | 3360 | ||
Tire Size | 7.00R16LT 14PR,7.50R16LT 12PR | ||
Number of steel plate springs | 3/6+6 | Front wheelbase(mm) | 1715 |
Fuel type | diesel oil | Rear wheelbase(mm) | 1590,1800 |
Emission standards | GB3847-2005,GB17691-2018 National VI | ||
（3）Operation:
Swing arm operation: The swing arm garbage truck operates the handling and unloading of the garbage bin through the swing arm device, which can achieve multi angle and high-efficiency cleaning work.
Compression function: The swing arm garbage truck has garbage compression function, which compresses garbage through a hydraulic system, reduces volume, and improves transportation efficiency.
Operating system: The operating system of the swing arm garbage truck adopts a human-computer interaction interface, which is easy to operate. Operators can control and monitor vehicles through the console, achieving comprehensive operation and management.
|
|
|
|
5: The process display of Shandong Xiangnong production workshop is as follows
(1): Clear division of labor for assembly line operations (each process is self inspected and qualified by a dedicated person before entering the next process)!
(2): All workshop welders have welding certificates (welding technicians have more than 10 years of work experience)!
(3): Quality department (semi-finished product inspection, testing, pre spray testing, pre shipment testing, trial run inspection, qualified before leaving the factory)!
(4): Using manganese carbon steel plate raw materials and standard well-known brand accessories, fully automatic welding equipment (single-sided welding double-sided forming, resistant to solid and pressure without sand holes, false welding and leakage)!
(5) Adopting advanced sandblasting and spray coating technology (sandblasting: can remove all surface rust and other dirt, oxide layer, effectively improve the adhesion and anti-corrosion ability between the tank and the spray coating. Spray coating can make the tank display a uniform and smooth natural color, with a more beautiful appearance and good visual effect!
|
|
|
|
6、Workshop
Production Technology Explanation
（1）Sandblasting and spray coating process
1): Firstly, sandblasting process - using high-pressure high-frequency sandblasting instead of traditional sanding process, the speed of removing surface oxide layer is fast, the sanding is uniform, and there can be tens of thousands of sand holes per square meter, which can remove all dirt such as surface rust and effectively improve the adhesion and corrosion resistance of the tank body and spray coating.
2): Spray coating technology - environmentally friendly powder coating can make the tank display a uniform and smooth natural color, with a more beautiful and visually appealing appearance.
3): After being baked at a high temperature of 220 degrees Celsius, the paint booth has good adhesion, anti-corrosion, rust proof, corrosion resistance, acid and alkali resistance, moisture resistance, insulation, aging resistance, good hand feel, and a lifespan three times that of normal paint spraying.
Related videos：
（2）welding technology
1): Rolling machine process: welding is performed first, followed by plate alignment. Two sides are welded in one molding process, and then the rolled plate is rolled out. Our rolling machine is larger than those of other factories. After the rolling machine is larger, we reduce the welding seams of the middle tank body joints, because all tanks, whether it is the suction tank or the sewage tank, are not affected. They all belong to a type of pressure vessel that can withstand a certain amount of pressure. If there are more welds on a tank like this, the compressive strength will be lower. This means that the compressive strength of single-sided welding and double-sided welding is different. If the welds are normal, there are basically no additional welds on the entire plate. All pressure vessels, including many of the tanks used for chemical products, are automatically welded, and all requirements are single-sided welding with double-sided forming, because their ability to withstand pressure is the strongest. Then reduce the number of joints in the middle and increase their compressive strength. This is why ordinary welding can increase pressure by at least two pressures without any problem.
2): We have the most advanced fully automatic trigger (mainly for tank bodies), which is welded tightly inside and outside, because the sewage tank or water tank comes into contact with highly corrosive dirt, which will corrode over time. The welded area will corrode from the inside out, and cannot be repaired.
3): Advantages of fully automatic welding: One side two welding, single-sided welding with double-sided forming, uniform weld seam, strong pressure resistance (no problem within 8 pressures), no sand holes, no leakage or air leakage, only the plate welding machine can achieve this effect. (Disadvantages of manual welding: uneven welding on one side, false welding, leakage, sand hole phenomenon, if the welding joint is not tight and vacuum pressure is not applied, it is easy to leak gas, with a high risk factor). Fully automatic welding does not have this problem and has a high safety factor.
Related videos：
4): Rotating machine head welding, the head is formed by one-time stamping, and the edge is sloping to fill the weld seam and connect tightly with the welding, with strong compressive strength. (Flat surfaces are not suitable, as they have low resistance to pressure).
After docking the heads on both sides, place them on a rotating machine and rotate 360 degrees to weld the heads, which is also automatic welding. The weld seam is uniform, smooth, and aesthetically pleasing, without sand holes or false welding. (If it is manual welding, the weld seam is uneven, followed by false welding, and there are many missed welds. Because the heads on both sides are the main pressure resistant areas, the materials used for the use of the heads on both sides are very important).

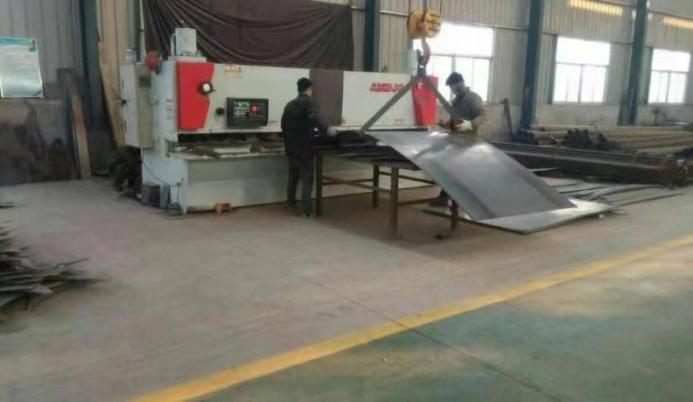

5): Scissor machines are also available (even the most common small factories have them).
|
|
|
|
|
|
7、Company Qualification Introduction
|
|
|
|
|
|
|
|
|
|
|
|
|
|
